Our Products Page
Corus Cables has a range of wires and cables to suit every electrical connection requirement and rating. We supply residential wires for interior electrical wiring in homes and apartments, as well as wires and cables for commercial and industrial buildings. Whatever the need, we can fulfill it.
Our Paroduct//
Product Range
- MULTISTRAND WIRE
- SUBMERSIBLE 3 CORE FLAT CABLES
- V.I.R. Cables
- MULTICORE ROUND FLEXIBLE CABLES
- FLEXIBLE WIRE
- COMPUTER AND NETWORKING CABLES
- CO-AXIAL CABLES
- TELEPHONE AND SWITCHBOARD CABLES
- C.C.T.V. AND SPEAKER CABLES
- ALUMINIUM SINGLE CORE PVC INSULATED UNSHEATHED CABLES

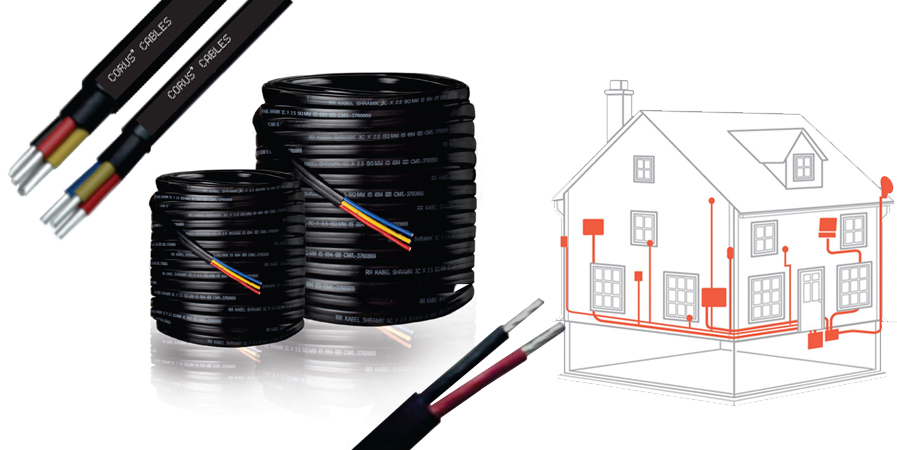

- ALUMINIUM FLAT TWIN AND MULTICORE UNARMORED CABLES
- Size : 1.5 Sq.mm to 25 Sq.mm
- Specifications : IS-694, IS-8130, IS-5831
- Conductor : H 2 Grade Aluminium
- Insulation : Special grade PVC
- Sheath : Tough outer PVC sheath
- Packing : 100mtrs polywraped or cloth packing, higher lengths on drum
Client Enquiry
ALUMINIUM 2 CORE FLAT PVC INSULATED & SHEATHED CABLE
|
Nominal area of Conductor sq. mm |
Thickness of Insulation (Nom.) mm |
Sheath Thickness (Nom.) mm |
Approx Overall Width 'w' mm |
Dimension X Thickness 'T' mm |
Resistance (max) per km @ 20°C Ohms. |
| 2.5 | 0.7 | 1.00 | 9.70 | 6.20 | 12.10 |
| 4.0 | 0.8 | 1.00 | 11.30 | 6.95 | 7.41 |
| 6.0 | 0.8 | 1.10 | 12.80 | 7.75 | 4.61 |
| 10.0 | 1.0 | 1.20 | 15.65 | 9.25 | 3.08 |
| 16.0 | 1.0 | 1.30 | 18.00 | 10.65 | 1.91 |
Other Products Range
We can even design and manufacture special purpose wires and cables.
