Our Products Page
Corus Cables has a range of wires and cables to suit every electrical connection requirement and rating. We supply residential wires for interior electrical wiring in homes and apartments, as well as wires and cables for commercial and industrial buildings. Whatever the need, we can fulfill it.
Our Paroduct//
Product Range
- MULTISTRAND WIRE

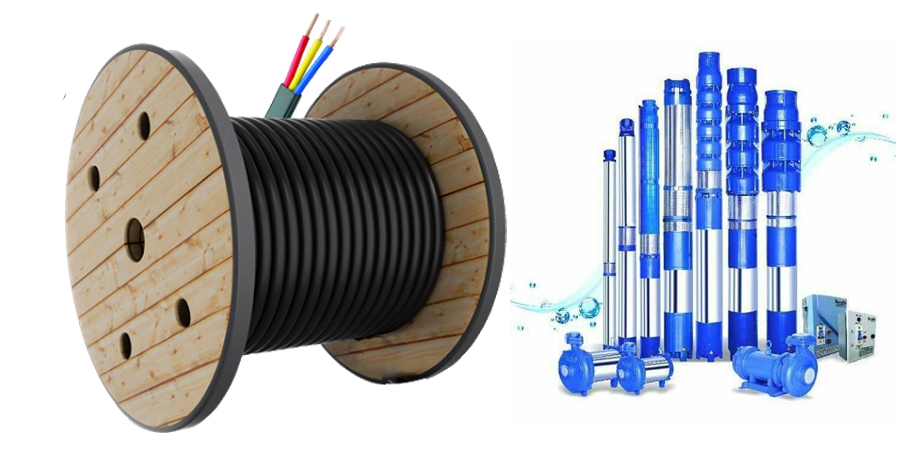

- SUBMERSIBLE 3 CORE FLAT CABLES
- V.I.R. Cables
- MULTICORE ROUND FLEXIBLE CABLES
- FLEXIBLE WIRE
- COMPUTER AND NETWORKING CABLES
- CO-AXIAL CABLES
- TELEPHONE AND SWITCHBOARD CABLES
- C.C.T.V. AND SPEAKER CABLES
- ALUMINIUM SINGLE CORE PVC INSULATED UNSHEATHED CABLES
- ALUMINIUM FLAT TWIN AND MULTICORE UNARMORED CABLES
- Size : 1.0 Sq.mm to 50 Sq.mm
- Specifications : IS-694, IS-8130, IS-5831
- Conductor : Bright annealed bare copper conductor
- Insulation : High grade PVC
- Colour of Cores : Red, Yellow, Blue
- Sheath : Tough robust outer sheath
- Packing : 500 +/- 10% meters packing in drums and 100mtrs polywraped with cloth
Client Enquiry
TECHNICAL DATA
|
CONDUCTOR |
INSULATION |
SHEATH |
Resistance @ 20°C (Max.) Ohm Km. |
Current Carrying @ Amps. |
||||
| Area (Nom.) Sq. MM | No. / Size of Wire MM | Thickness (Nom.) MM | Core Dia. (Nom.) MM | Overall Dimensions | ||||
| Thickness (Nom.) MM | Width "W" MM | Thickness "T" MM | ||||||
| 1.5 | 22/0.3 | 0.8 | 3.25 | 1.15 | 12.8 | 6.0 | 12.10 | 14 |
| 2.5 | 36/0.3 | 0.9 | 3.90 | 1.15 | 14.6 | 6.4 | 7.41 | 18 |
| 4.0 | 56/0.3 | 1.0 | 4.65 | 1.15 | 17.2 | 7.4 | 4.95 | 26 |
| 6.0 | 84/0.3 | 1.0 | 5.30 | 1.15 | 18.7 | 7.9 | 3.30 | 31 |
| 10.0 | 140/0.3 | 1.0 | 6.60 | 1.40 | 23.7 | 9.9 | 1.91 | 42 |
| 16.0 | 226/0.3 | 1.0 | 8.20 | 1.40 | 28.0 | 11.4 | 1.21 | 57 |
Other Products Range
We can even design and manufacture special purpose wires and cables.
